KOA Speer...
A Leader in Automotive Electronics
Although most engineers know KOA as the world leader in thick film resistors, many are not aware of the extent of our broad line of passive components. In addition to our standard products, we’ve specifically developed a wide range of high-reliability and anti-sulfuration components for the demanding applications found within the automotive industry.
KOA Speer's family of automotive components includes thin and thick film resistors, specialty resistors and arrays, power shunt resistors, current sense resistors, circuit protection and thermal sensors, and inductors. And we’re the industry’s most recognized and award-winning supplier for achieving the highest product quality, on-time delivery and responsive customer service. You can count on KOA Speer as your Automotive Electronics partner.
Automotive Solutions
To view the KOA Speer components used for a particular area, please click the colored boxes below or select the system from the list on the left.
Choose application from the list

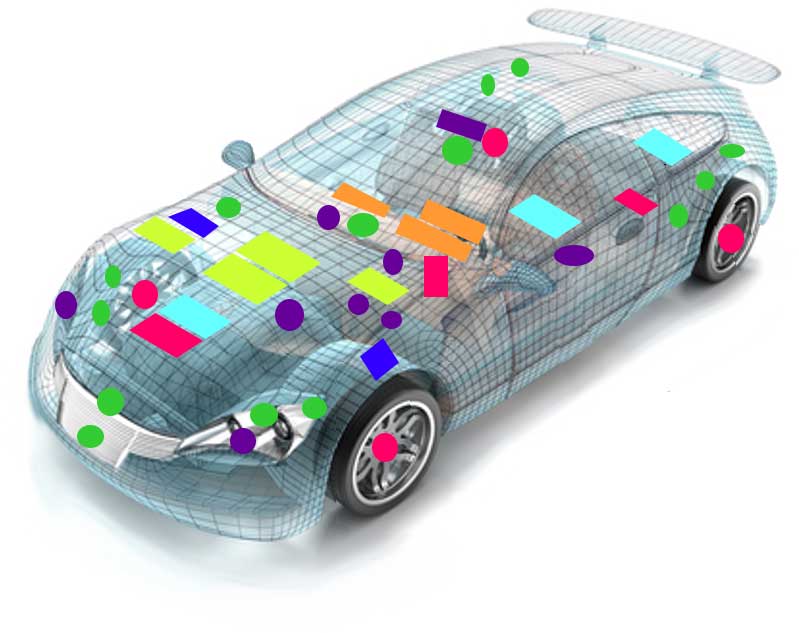

or Choose application from the image

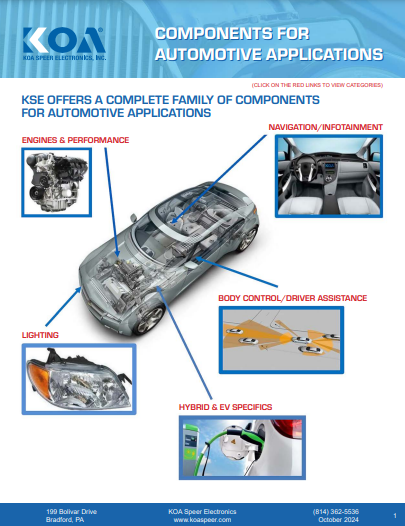

KOA Speer's Family of Automotive Components
Related Documents

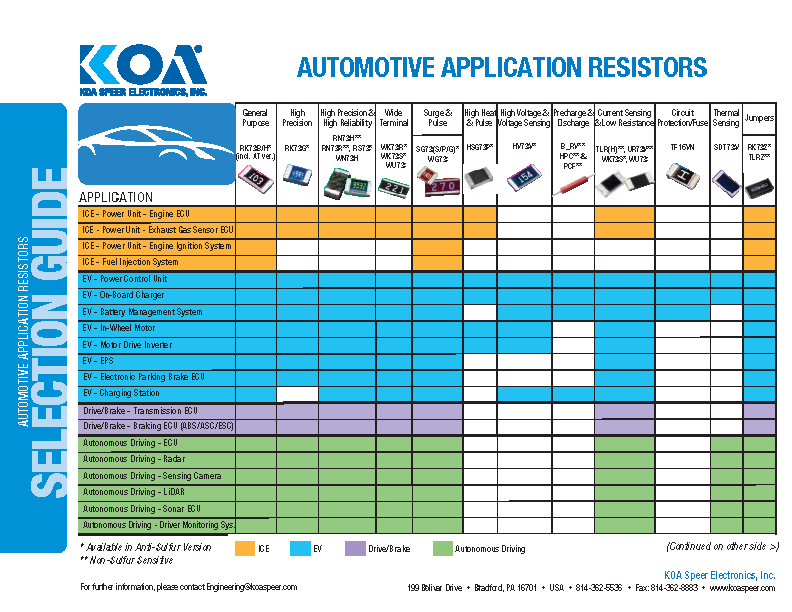

Automotive Components
Product Focused: Auto
Engine ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
Engine ECU
General Purpose

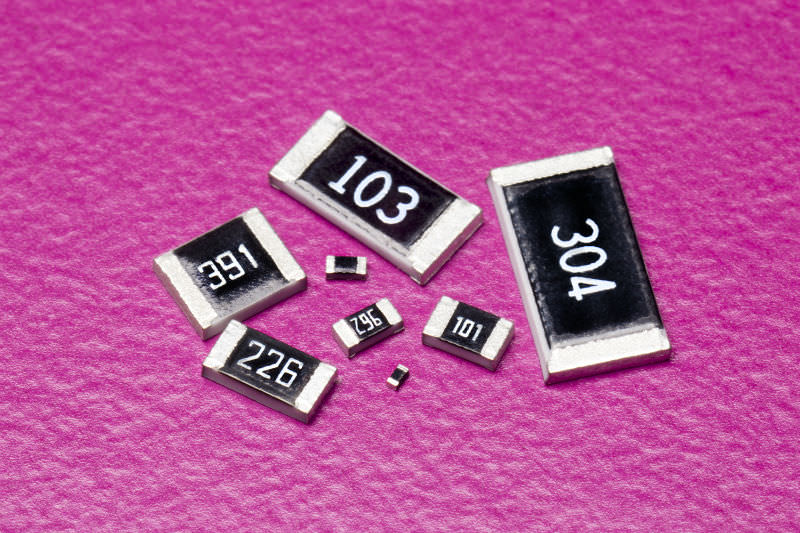

RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206

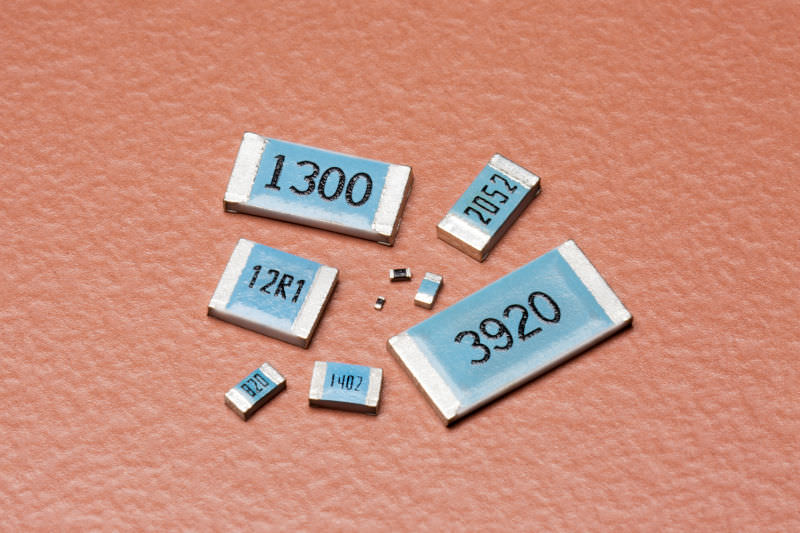

RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512

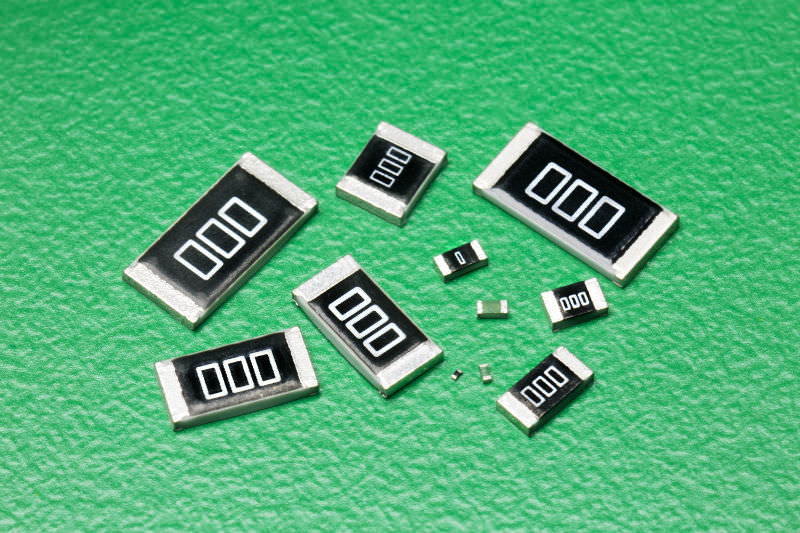

RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film

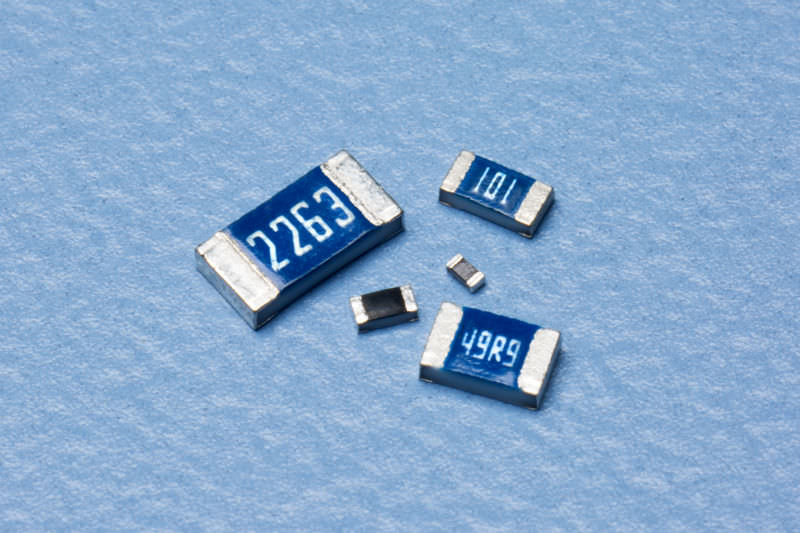

RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206

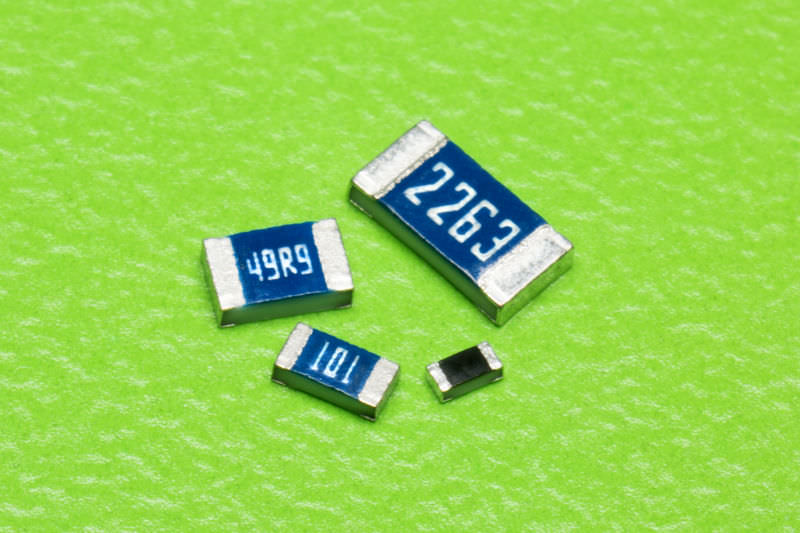

RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206

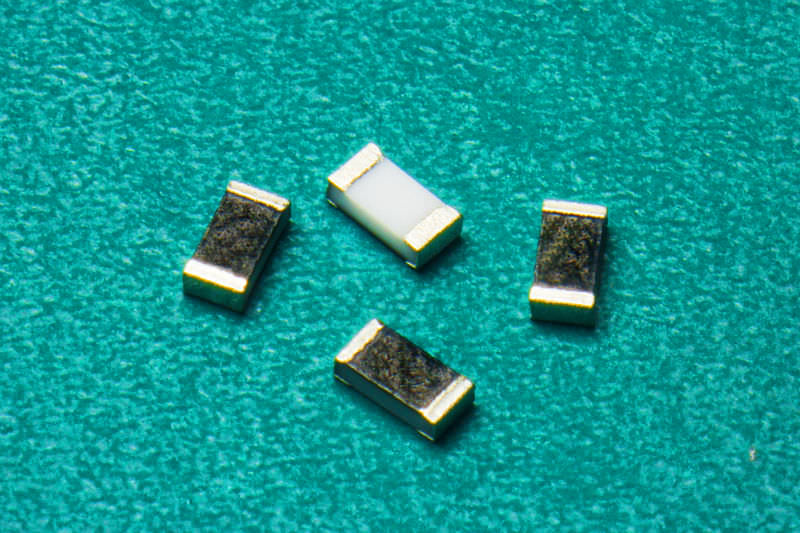

RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film

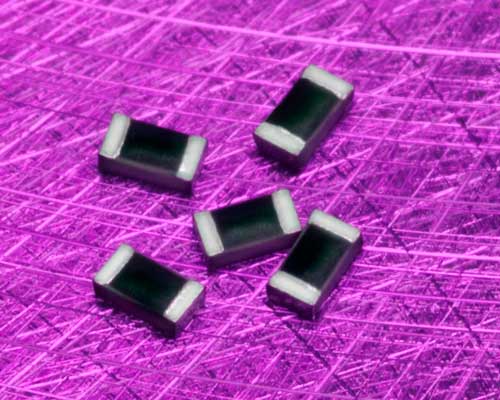

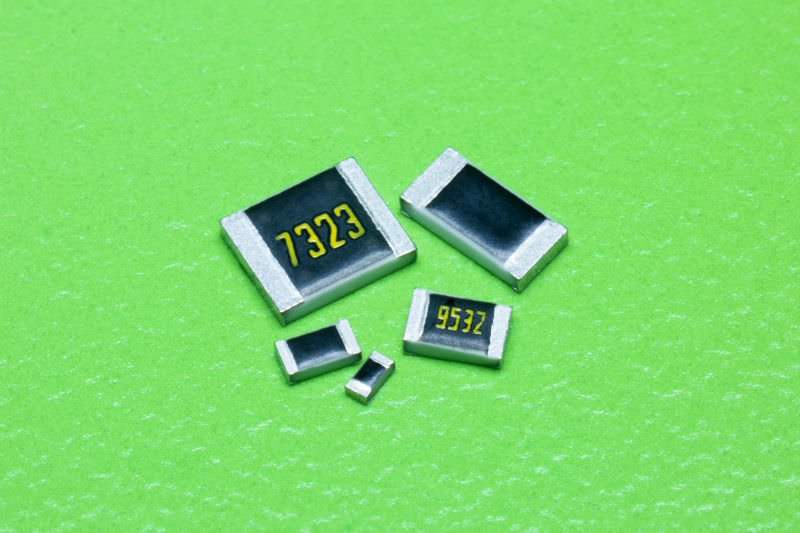

RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal

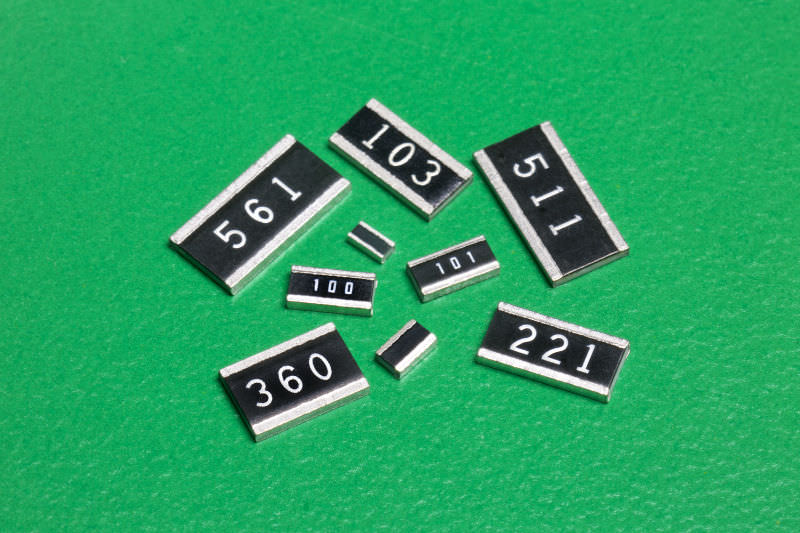

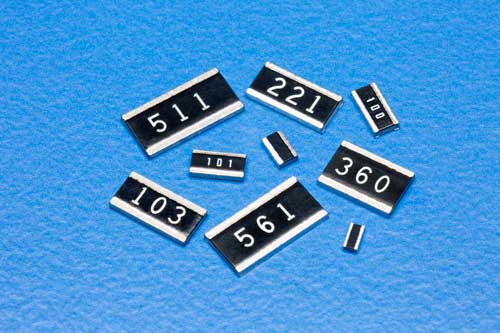

WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225

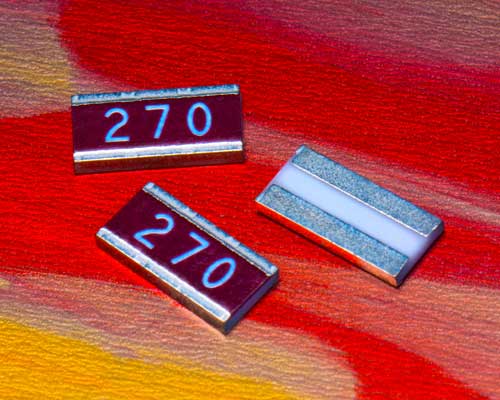

WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement

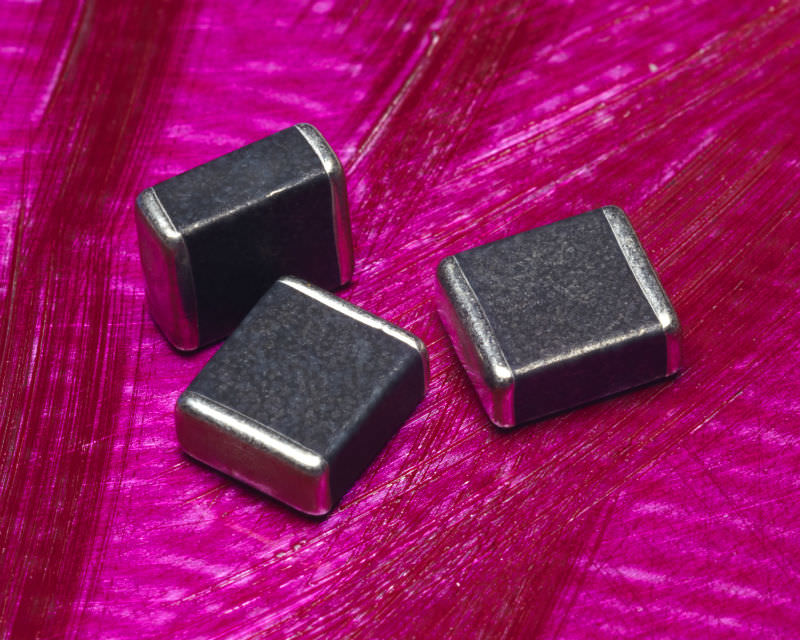

NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
Molded Chip Resistors

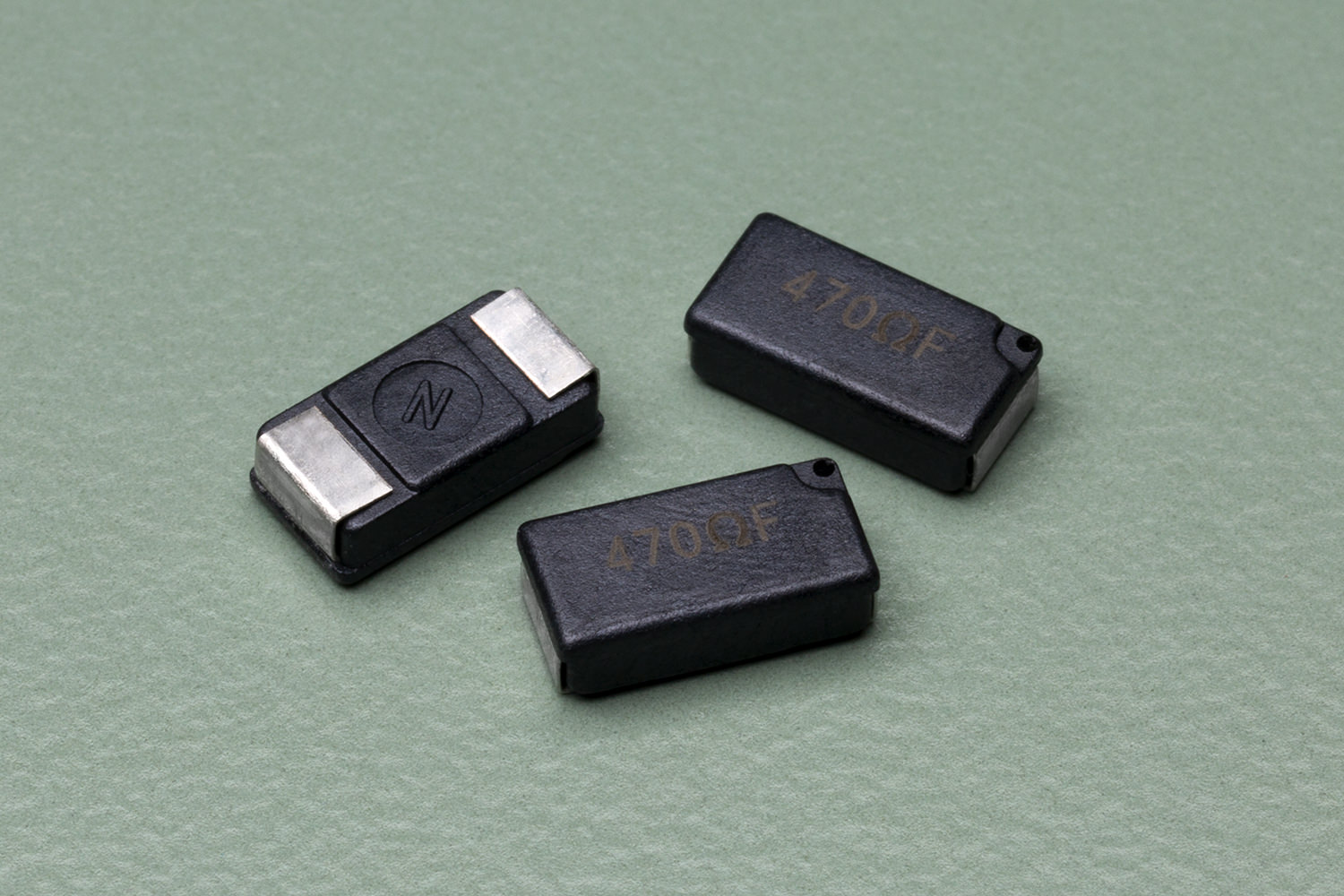

SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
Surge Current Thick Film

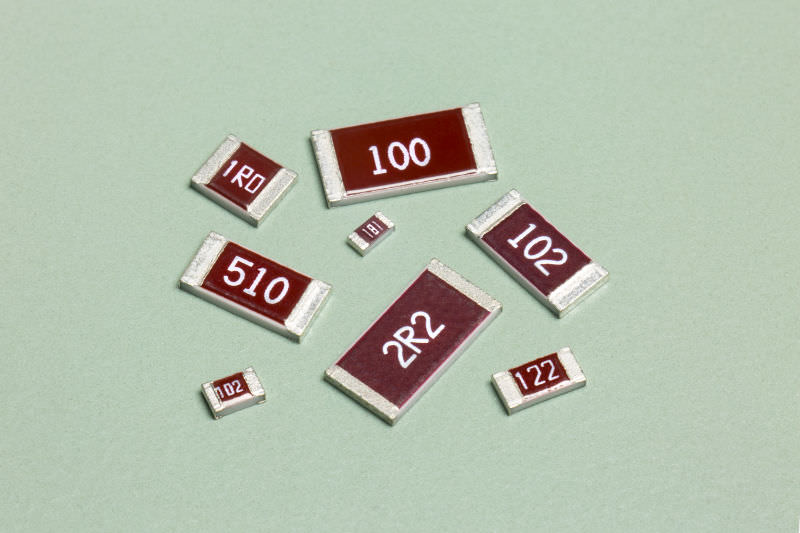

SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512

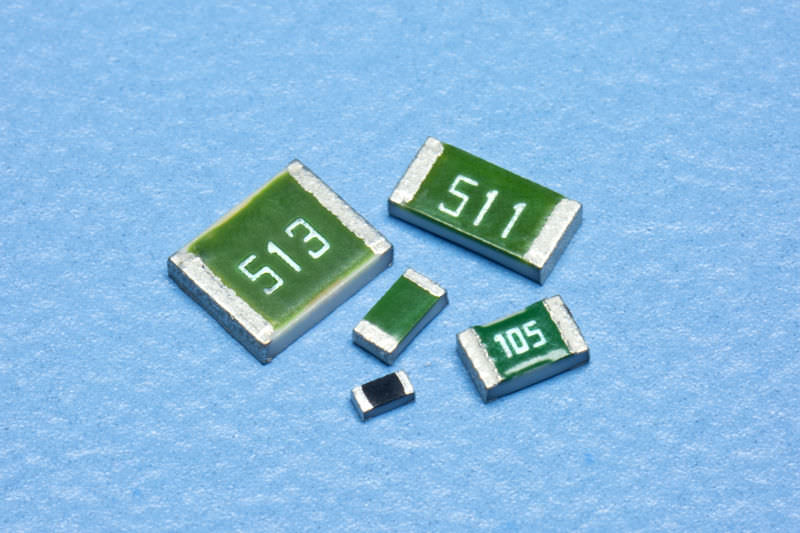

SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210

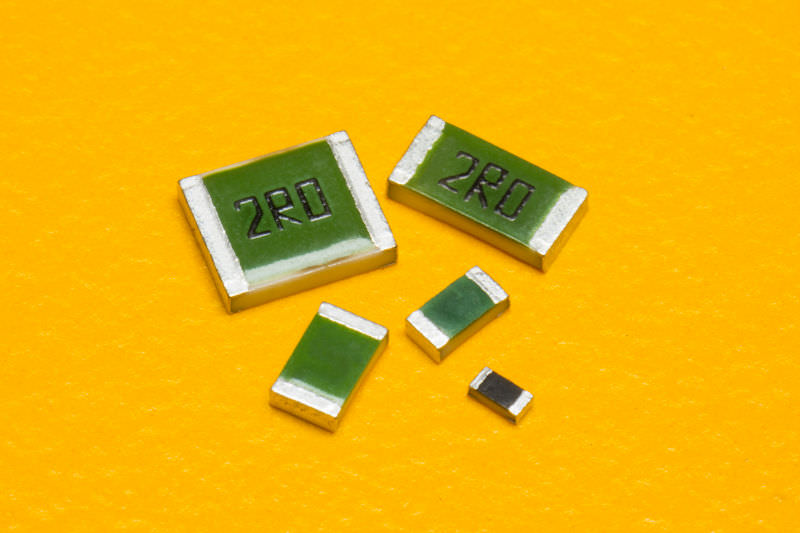

SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210

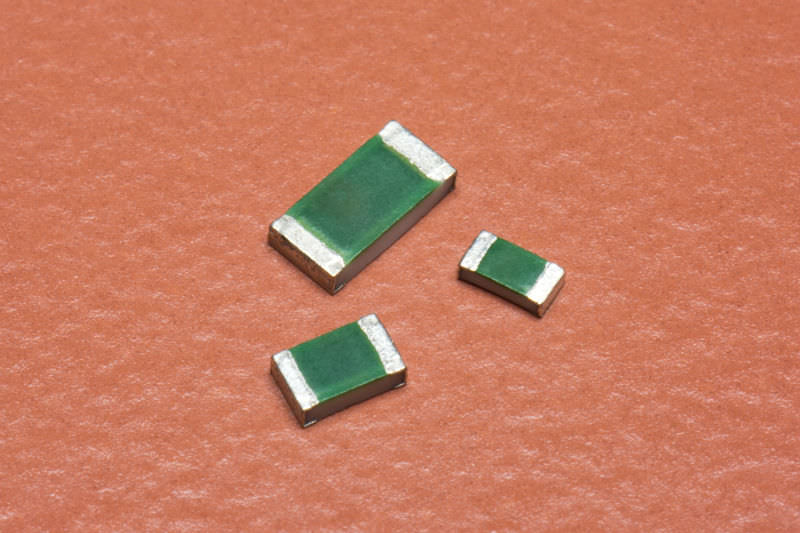

SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature

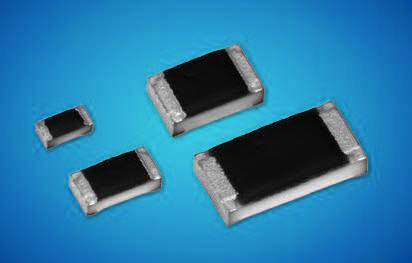

HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense

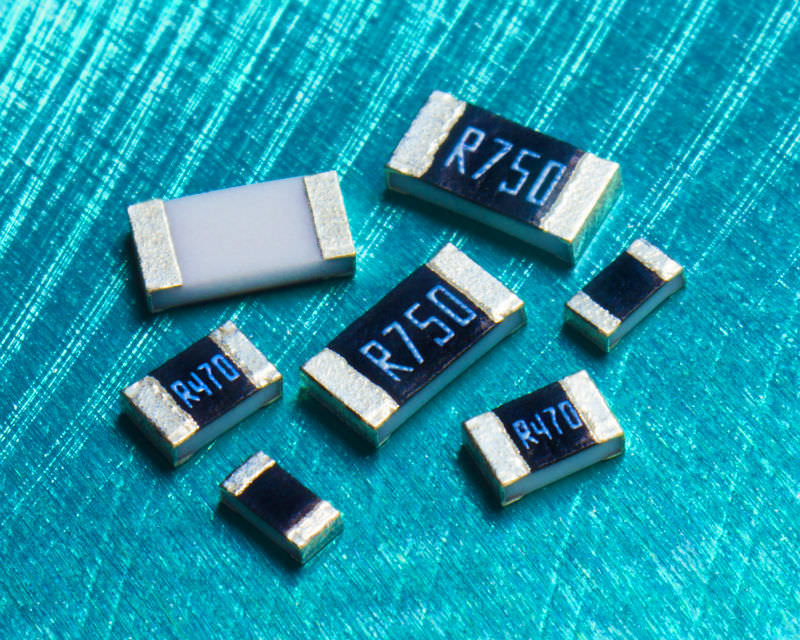

SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal

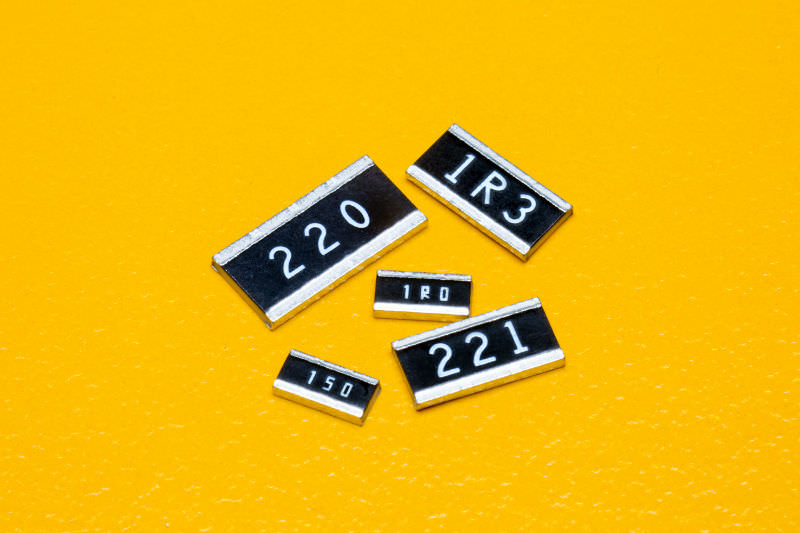

WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210

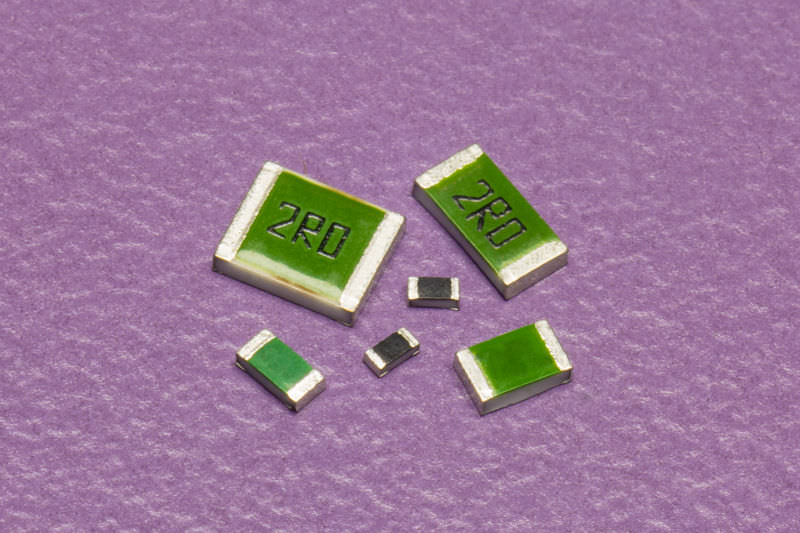

SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film

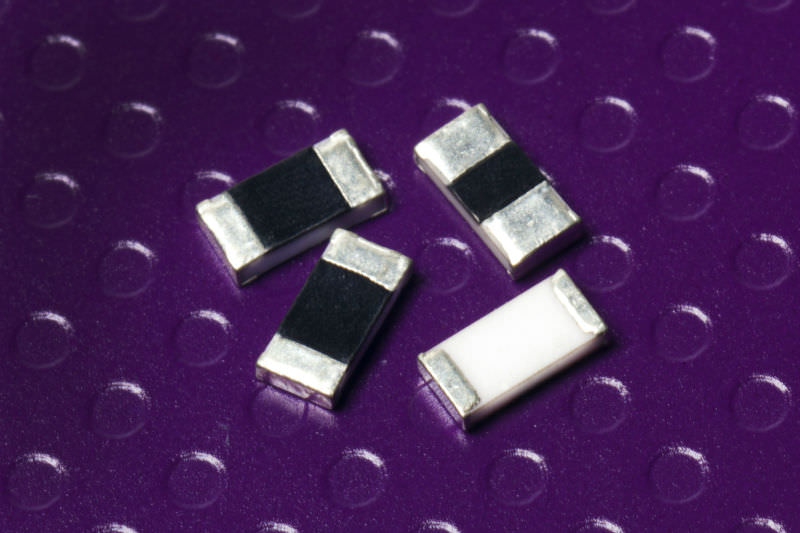

UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal

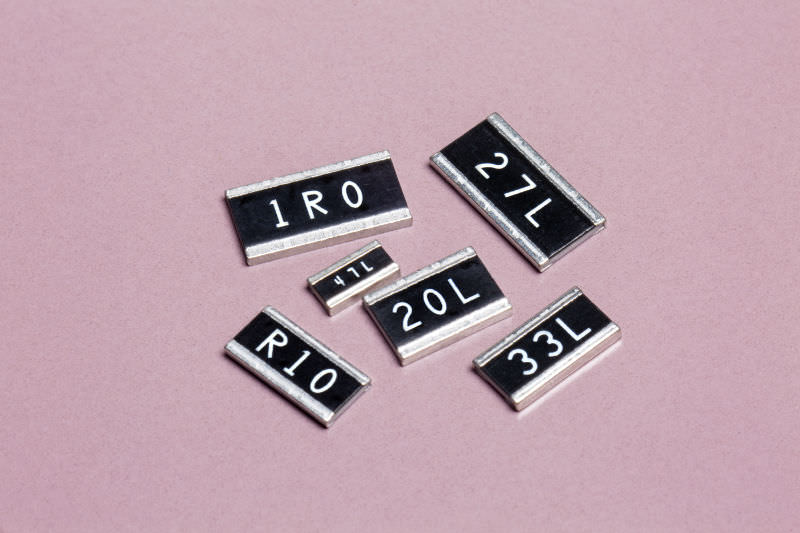

WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225

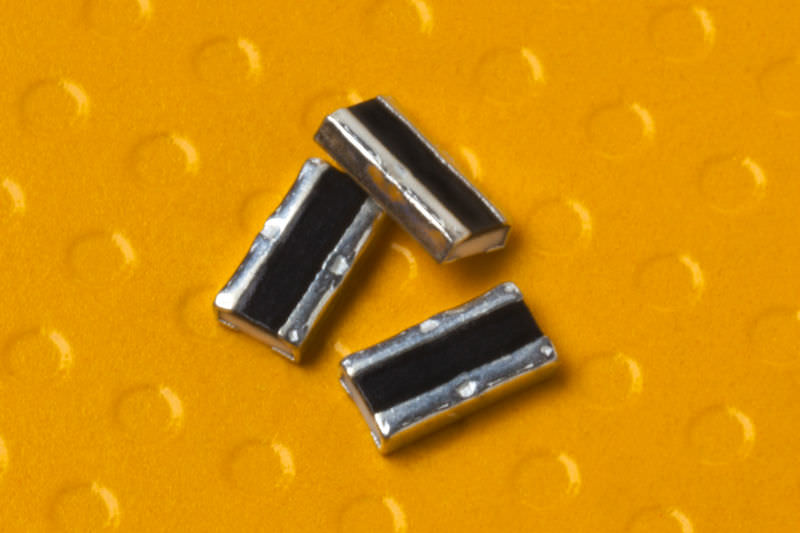

WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate

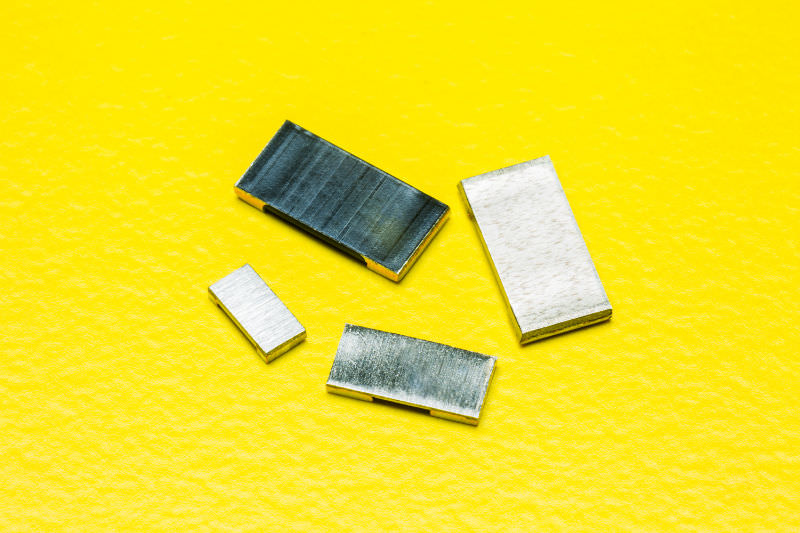

TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512

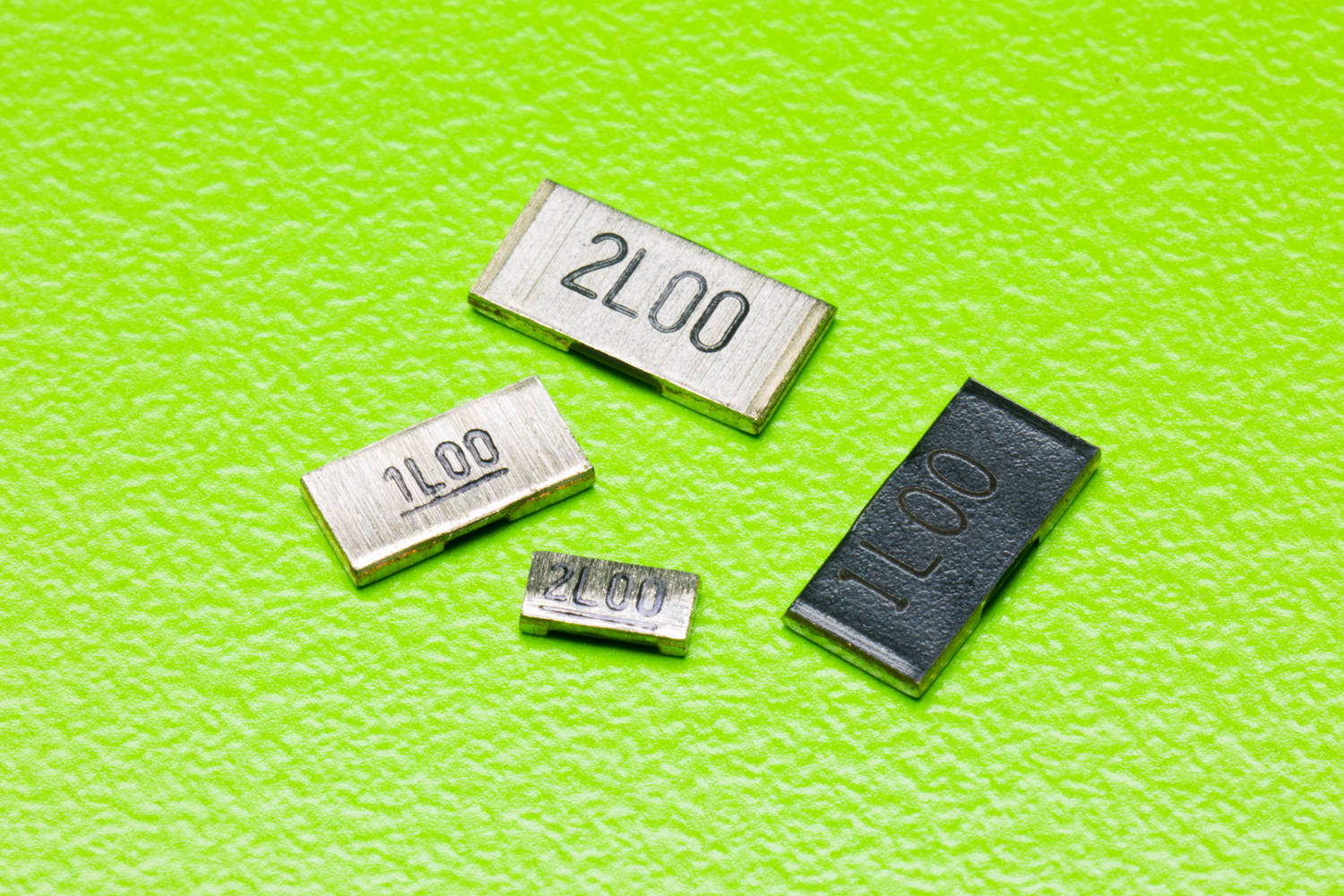

TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512

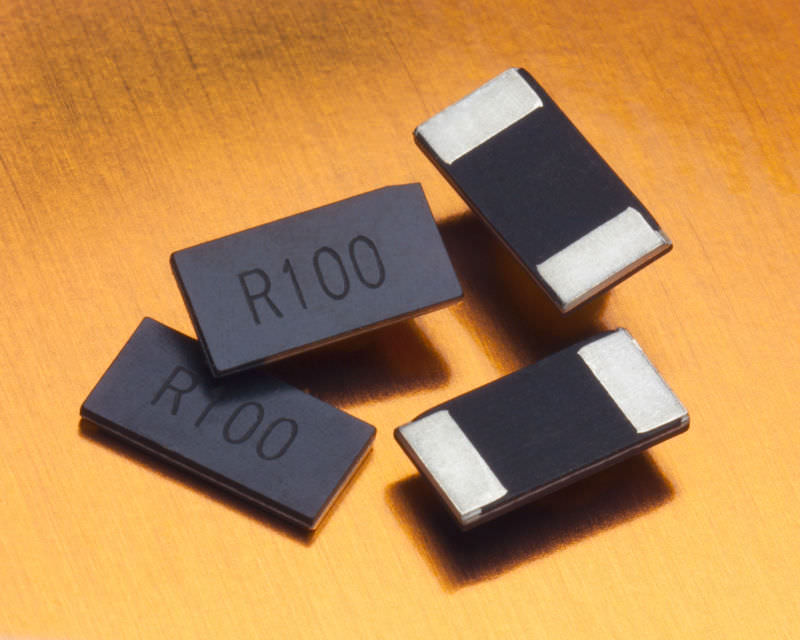

TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512

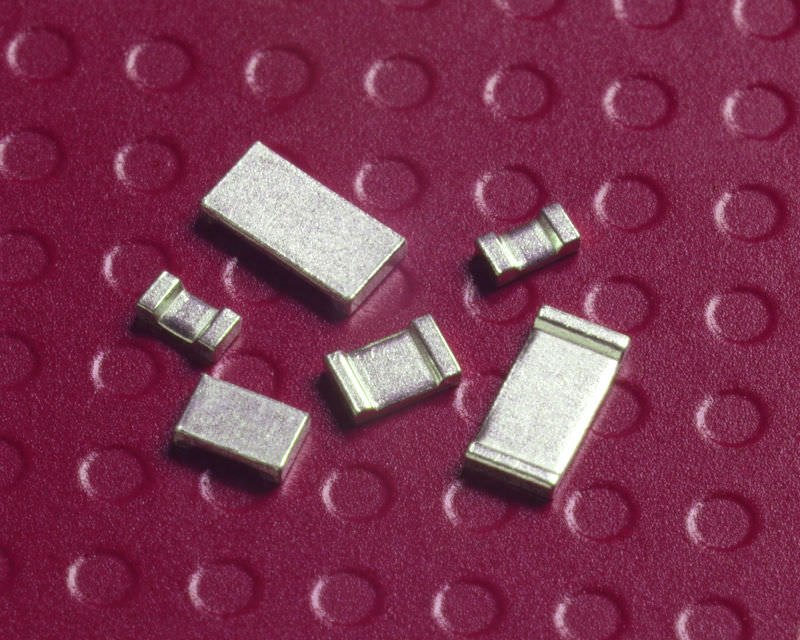

TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors

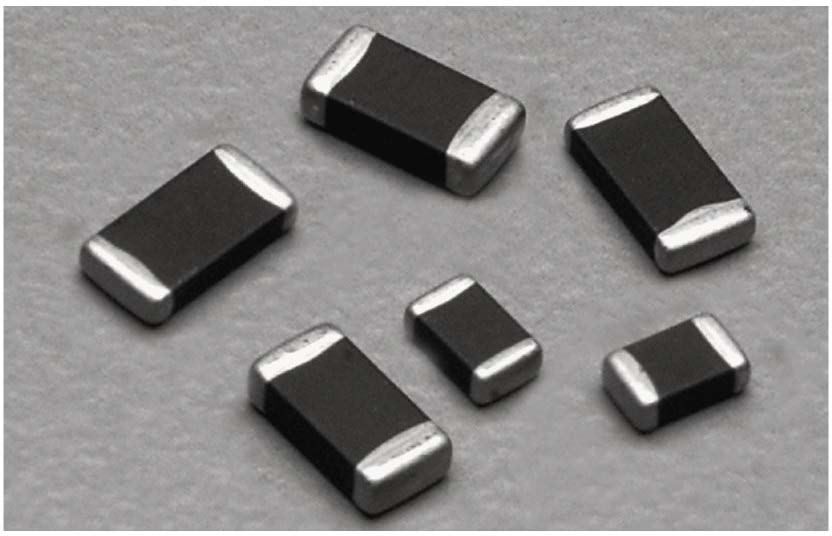

NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
Exhaust Gas Sensor ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
Exhaust Gas Sensor ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612

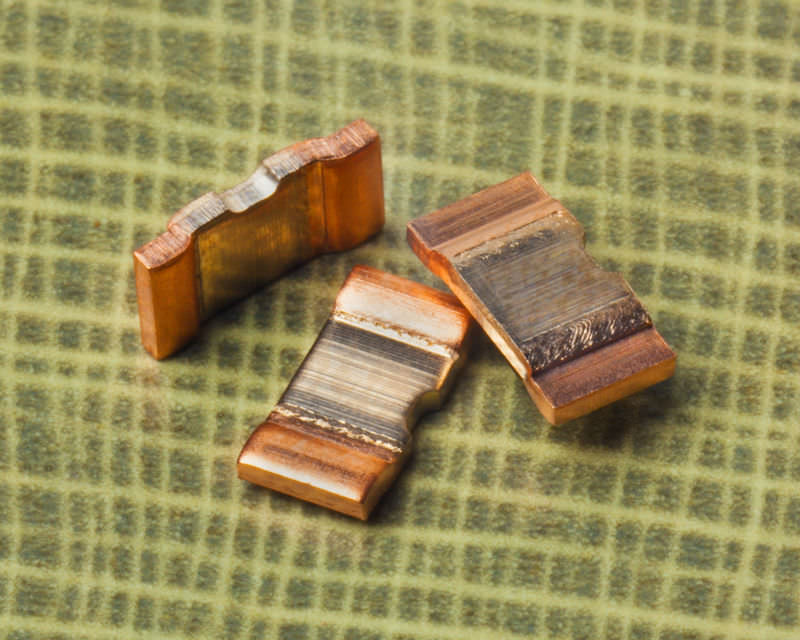

Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
Engine (Ignition System)
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
Engine (Ignition System)
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit

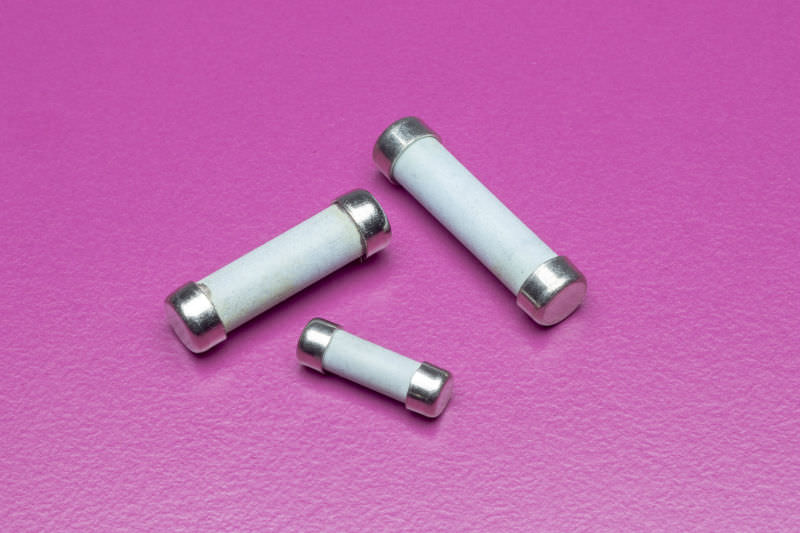

CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Fuel Injection System
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
Fuel Injection System
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested

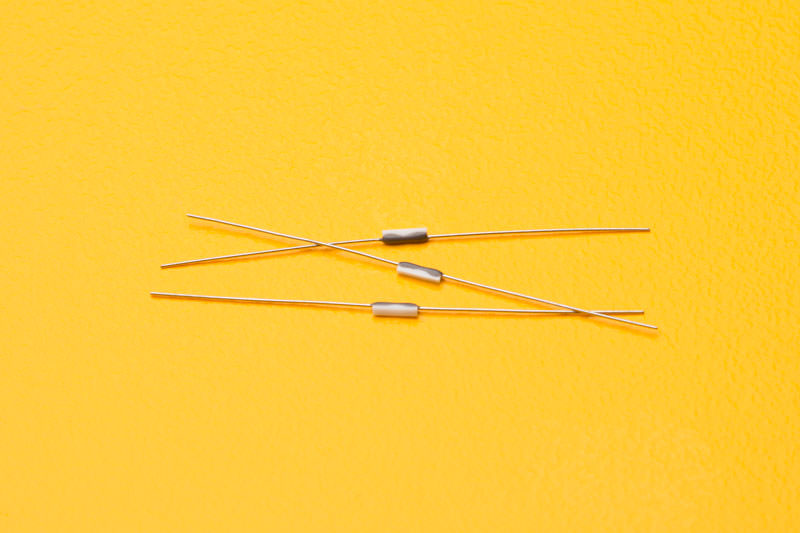

SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors

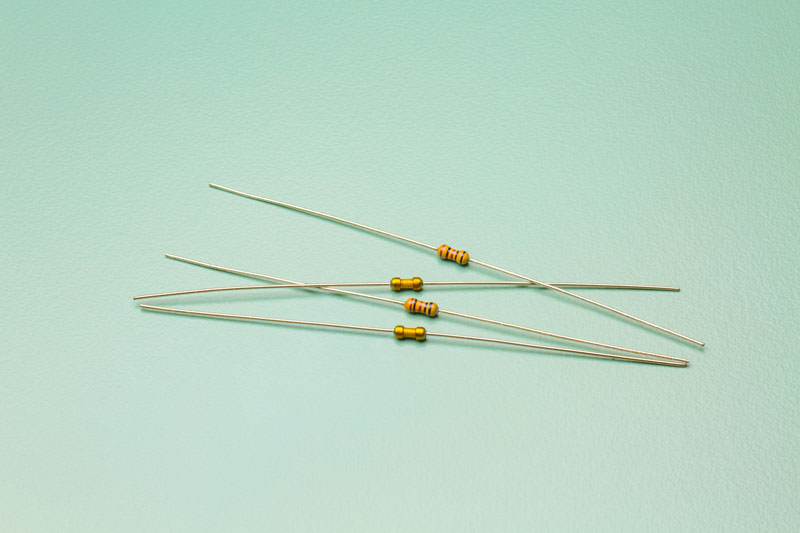

SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
Power Control Unit
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
Power Control Unit
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512

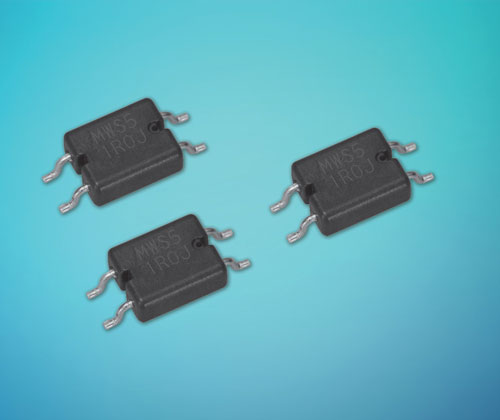

MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
On-Board Charger
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
On-Board Charger
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
Battery Management System
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
Battery Management System
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
In-Wheel Motor
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
In-Wheel Motor
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Motor Drive Inverter
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
Motor Drive Inverter
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
EPS
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
EPS
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Electronic Parking Brake ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
Electronic Parking Brake ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Transmission ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
Transmission ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Braking ECU (ABS/ASC/ESC)
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
Braking ECU (ABS/ASC/ESC)
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
ADAS-ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
ADAS-ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Short-Range Radar
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Short-Range Radar
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Long-Range Radar
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Long-Range Radar
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Sensing Camera
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Sensing Camera
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
LiDAR
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
LiDAR
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Sonar ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Sonar ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Driver Monitoring System
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Driver Monitoring System
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Integrated ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Integrated ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Gateway ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Gateway ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Lamp Module
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Lamp Module
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Door Control Module
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Door Control Module
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
RN73R High Reliability Thin Film
- Endurance at 85°C (1,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.25%
- Resistance range: 10 ~ 1.5MΩ
- Power rating: 0.063W ~ 0.5W
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5 ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Airbag ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Airbag ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
RN73R High Reliability Thin Film
- Endurance at 85°C (1,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.25%
- Resistance range: 10 ~ 1.5MΩ
- Power rating: 0.063W ~ 0.5W
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5 ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Air Conditioning Controller
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Air Conditioning Controller
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
RN73R High Reliability Thin Film
- Endurance at 85°C (1,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.25%
- Resistance range: 10 ~ 1.5MΩ
- Power rating: 0.063W ~ 0.5W
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5 ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Digital Mirror
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Digital Mirror
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
RN73R High Reliability Thin Film
- Endurance at 85°C (1,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.25%
- Resistance range: 10 ~ 1.5MΩ
- Power rating: 0.063W ~ 0.5W
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5 ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Air Conditioning Compressor
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
Air Conditioning Compressor
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
RN73R High Reliability Thin Film
- Endurance at 85°C (1,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.25%
- Resistance range: 10 ~ 1.5MΩ
- Power rating: 0.063W ~ 0.5W
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5 ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
HUD-ECU
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
HUD-ECU
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
RN73R High Reliability Thin Film
- Endurance at 85°C (1,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.25%
- Resistance range: 10 ~ 1.5MΩ
- Power rating: 0.063W ~ 0.5W
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5 ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Cockpit
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
- Wirewound
Cockpit
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
RN73R High Reliability Thin Film
- Endurance at 85°C (1,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.25%
- Resistance range: 10 ~ 1.5MΩ
- Power rating: 0.063W ~ 0.5W
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5 ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
-5.jpg)
MOS/MOSX Reduced Size Metal Oxide Power Type
- MOS/MOSX small size power type resistor
- Minimum dielectric withstanding voltage: 400V ~ 800V
- Power rating: 0.5W ~ 5W
- Resistance range: 0.1Ω (MOSX) ~ 100kΩ (MOS)
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±300ppm/°C
SPR Power Carbon Film
- High reliability performance
- SPRX - fixed metal film resistor available for low resistance
- Minimum dielectric withstanding voltage: 300V ~ 800V
- Power rating: 0.25W ~ 5W
- Resistance range: 0.1Ω (SPRX) ~ 110kΩ (SPR)
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±350ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Wirewound
RW Coat Insulated Miniature Precision Power Wirewound
- Resistors similar to MIL-R-26E (U and V characteristics) and surface temperature (hot spot) 350°C max.
- RW_N are non-inductive wound and can be used in high frequency applications
- Operating temperature range: U: -55°C ~ +275°C, V: -55°C ~ +350°C
- Power rating: 0.5W ~ 10W (U characteristics), 3W ~ 14W (V characteristics)
- Resistance range: 0.1 ~ 62kΩ
- Tolerance: ±0.5%, ±1%, ±3%, ±5%
- TCR: -90 ~ +400ppm/°C
ITS Connect
- General Purpose
- Thick Film
- Thin Film
- Wide Terminal
- End of Life and NRND Products
- Molded Chip Resistors
- Surge Current Thick Film
- High Temperature
- Anti-Sulfur Chip Resistors: General Purpose
- Anti-Sulfur Chip Resistors: Current Sense
- Anti-Sulfur Chip Resistors: Wide Terminal
- Anti-Sulfur Chip Resistors: Anti-Surge
- Thick Film
- Wide Terminal
- Metal Plate
- Varistors
- High Voltage Circuit
- Platinum Thin Film Thermal Sensors
- High Voltage
- Power
- Anti-Sulfur Chip Resistors: High Voltage
- Power Shunts
- Fuses - Flat Chip
- Linear PTC Resistors Thin Film Linear PTC Thermistors
- Platinum Thin Film Surface Mount Thermal Sensor
- Wirewound
ITS Connect
General Purpose
RK73B 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 22MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes: 0402 - 1206
RK73H Precision 0.5%,1% Tolerance Thick Film Chip
- ±0.5%, ±1% High Precision Flat Chip Resistor
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±400ppm/°C
- Sizes: 01005 - 2512
RK73Z Zero Ohm Jumper Thick Film Chip
- Maximum continuous current: 0.5A ~ 2A
- Maximum overload current: 1A ~ 10A
- Maximum Resistance: 50mΩ
- Sizes: 0402 - 2512
Thick Film
RK73G High Precision
- Power rating: 0.1W ~ 0.25W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73 Ultra Precision High Reliability
- Excellent long-term stability with ?R of ±0.5% or better in reliability testing
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
RK73G-RT High Precision (Anti-Sulfur)
- Power rating: 0.1W ~ 0.25W
- Resistance range: 30 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%, ±1%
- TCR: ±50ppm/°C
- Sizes available: 0402 ~ 1206
RS73-RT Ultra Precision High Reliability (Anti-Sulfur)
- Power rating: 0.125W ~ 0.33W
- Resistance range: 10 ~ 10MΩ
- Tolerance: ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±25ppm/°C ~ ±50ppm/°C
- Sizes available: 0402 ~ 1206
Thin Film
RN73H High Reliability Thin Film for Automotive
- Endurance at 85°C (3,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.1%
- Power rating: 0.063W ~ 0.5W
- Resistance range: 10 ~ 1.5MΩ
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5ppm/°C ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
RN73R High Reliability Thin Film
- Endurance at 85°C (1,000h): ΔR of ±0.1%
- High temperature exposure: ΔR of ±0.25%
- Resistance range: 10 ~ 1.5MΩ
- Power rating: 0.063W ~ 0.5W
- Tolerance: ±0.05%, ±0.1%, ±0.25%, ±0.5%, ±1%
- TCR: ±5 ~ ±100ppm/°C
- Sizes: 0402 ~ 1210
Wide Terminal
WK73R
- Power rating: 0.33W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0204 ~ 1225
WG73 Surge Current
- Superior to WK73 in pulse withstanding
- Thick film flat chip resistor
- Power rating: 1W ~ 2W
- Resistance range: 560m ~ 1kΩ
- Tolerance: ±10%, ±20%
- TCR: ±100ppm/°C
- Sizes available: 0612 ~ 1225
End of Life and NRND Products
WK73R (Higher Power)
- Power rating: 1.5W ~ 3W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0612 ~ 1225
NRND - Not Recommended For New Design. See standard version of WK73R for replacement
NV73DS Load Dump Surge Metal Oxide Varistors
EOL - End of Life- Symmetrical non-linearity V-I characteristics absorb positive and negative surge
- Meets JASO load dump surge test requirements
- Max. load dump surge energy: 63 ~ 70J
- Operating temperature: up to +125°C
- Sizes available: 2420
- AEC-Q200 Tested
SDT310VASP Small Type Platinum Thin Film Thermal Sensors
- Small heater element type with operating temperature range: -55°C ~ +600°C
- Small as quarter volume convenience type 3.2 second thermal time constant
- Excellent heat resistance
- Applies axial lead type suitable to use as heater element
- TCR: +3850±25ppm/°C
NRND - Not Recommended for New Design
Molded Chip Resistors
SLR1 Thick Film
- High operating temperature range up to 180°C
- Power rating: 1W
- Resistance range: 301m ~ 1MΩ
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: ±100ppm/°C
- Sizes available: 2512
MWS Wirewound
- Power rating: 5W
- Resistance range: 1 ~ 470Ω
- Tolerance: ±5%
- TCR: ±200ppm/°C
- Sizes available: 2512
Surge Current Thick Film
SG73 Pulse/Surge
- Superior to RK73 series in surge withstanding voltage and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73G Endured Pulse Power
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.2W ~ 0.5W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±0.25%, ±0.5%
- TCR: ±50ppm/°C
- Sizes available: 0603 ~ 1206
High Temperature
HSG73P High Temperature
- High heat resistance that can be used even at high temperatures above 155°C.
- Superior to RK73 series chip resistors pulse withstanding and high power
- Power rating: 0.125W ~ 0.75W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C
- Sizes available: 0402 ~ 1206
Anti-Sulfur Chip Resistors: General Purpose
RK73B-RT 2%, 5% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±2%, ±5%
- TCR: ±200ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73H-RT Precision 0.5%,1% Tolerance Thick Film Chip
- Power rating: 0.03W ~ 2W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes: 01005 - 2512
RK73Z-RT Zero Ohm Jumper Thick Film Chip
- Current rating: 0.5A ~ 2A
- Maximum surge current: 1A ~ 10A
- Resistance range: 50m ~ 100mΩ
- Sizes: 0201 - 2512
Anti-Sulfur Chip Resistors: Current Sense
SR73-RT Low Resistance, Thick Film
- Power rating: 0.166W ~ 0.66W
- Resistance range: 0.1 ~ 10Ω
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±300ppm/°C
- Sizes available: 0402 ~ 1210
Anti-Sulfur Chip Resistors: Wide Terminal
WK73R-RT Low Resistance, Current Sense
- Power rating: 0.75W ~ 2W
- Resistance range: 10 ~ 1MΩ
- Tolerance: ±1%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0508 ~ 1225
Anti-Sulfur Chip Resistors: Anti-Surge
SG73-RT Pulse/Surge
- Superior to RK73 series in surge withstanding and pulse withstanding
- Power rating: 0.1W ~ 1W
- Resistance range: 1 ~ 1MΩ
- Tolerance: ±10%, ±20%
- TCR: ±200ppm/°C ~ ±400ppm/°C
- Sizes available: 0603 ~ 2512
SG73S-RT Surge Protection
- Superior to RK73 series in surge withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
SG73P-RT Pulse Precision
- Superior to RK73 series in pulse withstanding and high power
- Power rating: 0.125W ~ 1.5W
- Resistance range: 1 ~ 10MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes available: 0402 ~ 1210
Thick Film
UR73V Low Resistance Flat Chip (for Automotive)
- Power rating: 0.5W ~ 1W
- Resistance range: 10m ~ 1Ω
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±250ppm/°C
- Sizes available: 0805 ~ 2512
SR73 Low Resistance
- Power rating: 0.1W ~ 1W
- Resistance range: 0.024 ~ 10Ω
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: 0 ~ ±400 ~ ±1000ppm/°C
- Sizes available: 0201 ~ 2512
Wide Terminal
WK73S Low Resistance
- Current sense flat chip resistor
- Power rating: 0.75W ~ 2W
- Resistance range: 10m ~ 9.76Ω
- Tolerance: ±0.5%, ±1%, ±5%
- TCR: 0 ~ ±200 ~ ±800ppm/°C
- Sizes available: 0508~ 1225
WU73 Low Resistance
- Power rating: 1W ~ 1.5W
- Resistance range: 10m ~ 100mΩ
- Tolerance: ±1%
- TCR: ±75ppm/°C ~ ±100ppm/°C
- Size available: 0612
Metal Plate
TLR (to 2W) Standard Power
- Power rating: 0.5W ~ 2W
- Resistance range: 0.5m ~ 20mΩ
- TCR: ±50ppm/°C ~ ±150ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLR (to 5W) Higher Power
- Power rating: 1W ~ 5W
- Resistance range: 0.5 ~ 20mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 1206 ~ 2512
TLRH Higher Resistance Range
- Power rating: 0.25W ~ 5W
- Resistance range: 6m ~ 270mΩ
- TCR: ±50ppm/°C ~ ±75ppm/°C
- Tolerance: ±1%
- Sizes available: 0805 ~ 2512
TLRZ Zero Ohm Jumpers
- Current Ratings: 10A ~ 50A
- Resistance range: 0.5mΩ max.
- Sizes available: 0402 ~ 1206
Varistors
NV73DL Metal Oxide Varistors for Automotive
- Ideal for countermeasures against ESD (conforming to IEC61000-4-2)
- High resistance to cyclic temperature stress
- AEC Q200 Tested
- Sizes available: 0603 - 1206
- Varistor voltage: 10 - 90V1mA
- Max energy: 0.1 - 1.5J
High Voltage Circuit
CPCN Fixed Ceramic
- Suitable for noise suppression of engine ignition systems
- Reliable in pulse/transient applications
- Maximum working voltage: 86V~ 173V
- Maximum overload voltage: 215V ~ 432V
- Power rating: 0.5W ~ 2W
- Resistance range: 1k ~ 15kΩ
- Tolerance: ±20%
- TCR: -1200 ±300ppm/°C
Platinum Thin Film Thermal Sensors
SDT101 Axial Platinum Thin Film Thermal Series Sensors
- Stable characteristics even in use for a long time with an excellent environment resistance
- Operating temperature range: SDT101A: -55°C ~ +150°C, SDT101B: -55°C ~ +300°C
- Stationary temperature: 0°C, 25°C
- TCR: +3500ppm/°C
SDT310 Small Type Platinum Thin Film Thermal Sensors
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Small package with a real ability of 1kΩ resistance
- Thermal time constant is improved with the small package
- Operating temperature range: -55°C ~ 155°C, -55°C ~ 400°C, -55°C ~ +650°C
High Voltage
HV73V High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power
RCR Anti-Surge
- Excellent anti-surge characteristics
- RCR50+, RCR50EN, and RCR60 (1M ~ 12MΩ) are discharge path resistors recognized by UL1676 and c-UL (CSA-C22.2 No. 1-M94)
- RCR25EN, RCR50EN (100k ~ 33MΩ), and RCR60 (100k ~ 56MΩ) are approved by EN62368-1 G.10 safety
- Absolute maximum working voltage: 500V ~ 5000V, 1150V(ac)
- Absolute maximum overload voltage: 1000V ~ 5000V, 1500V (ac)
- Power rating: 0. 25W ~ 3W
- Resistance range: 3.3 ~ 100MΩ
- Tolerance: ±1%, ±5%
- TCR: ±200ppm/°C ~ ±500ppm/°C
MOS/MOSX Reduced Size Metal Oxide Power Type
- MOS/MOSX small size power type resistor
- Minimum dielectric withstanding voltage: 400V ~ 800V
- Power rating: 0.5W ~ 5W
- Resistance range: 0.1Ω (MOSX) ~ 100kΩ (MOS)
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±300ppm/°C
SPR Power Carbon Film
- High reliability performance
- SPRX - fixed metal film resistor available for low resistance
- Minimum dielectric withstanding voltage: 300V ~ 800V
- Power rating: 0.25W ~ 5W
- Resistance range: 0.1Ω (SPRX) ~ 110kΩ (SPR)
- Tolerance: ±1%, ±2%, ±5%
- TCR: ±350ppm/°C
Anti-Sulfur Chip Resistors: High Voltage
HV73V-RT High Voltage for Automotive
- Maximum working voltage: 350V ~ 800V D.C
- Power rating: 0.1W ~ 0.33W
- Resistance range: 10k ~ 51MΩ
- Tolerance: ±0.5%, ±1%, ±2%, ±5%
- TCR: ±100ppm/°C ~ ±200ppm/°C
- Sizes: 0603 ~ 1206
Power Shunts
PSL2 Ultra Low Resistance, 2-Terminal
- Power rating: 8W (126A) ~ 9W (212A)
- Resistance range: 0.2m ~ 0.5mΩ
- Tolerance: ±1%
- TCR: 250±100ppm/°C ~ ±115ppm/°C
- Size available: 2512
PSF4 Ultra Low Resistance, 4-Terminal
- Power rating: 3W (54A) ~ 5W (100A)
- Resistance range: 0.5m ~ 1mΩ
- Tolerance: ±1%
- TCR: ±50ppm/°C
- Size available: 1216
HS Ultra Low Resistance
- Power rating: 50W (1000A) ~ 18W (300A)
- Resistance range: 0.05m ~ 0.2mΩ
- Tolerance: ±5%
- TCR: 50±25ppm/°C ~ 75±50ppm/°C
- Sizes available: 4015M ~ 8022M
Fuses - Flat Chip
TF16VN Chip Current Fuses for Automotive
- Small and light for the secondary circuit
- Current rating: 0.04 ~ 3.15A
- Temperature cycle (-55°C ~ 125°C), 1000 cycle
- Anti-pulse type in 0603 size
- AEC-Q200 Qualified
Linear PTC Resistors Thin Film Linear PTC Thermistors
LT73V Linear Positive Tempco Flat Chip Thermistors for Automotive
- AEC-Q200 Qualified
- Various TCR: +150 ~ +4500ppm/°C are available
- Operating temperature range: -55°C ~ +155°C
- Sizes: 0805, 1206
- Rated ambient temperature: +85°C
Platinum Thin Film Surface Mount Thermal Sensor
SDT73V Automotive Platinum Thin Film Chip Series Sensors
- AEC-Q200 Qualified
- SMD platinum thin film thermal sensor
- TCR: +3850ppm/°C is in accordance with JIS-DIN standards IEC
- Operating temperature range: -55°C ~ +155°C
- Thermal dissipation constant: 2.4mW/°C
Wirewound
RW Coat Insulated Miniature Precision Power Wirewound
- Resistors similar to MIL-R-26E (U and V characteristics) and surface temperature (hot spot) 350°C max.
- RW_N are non-inductive wound and can be used in high frequency applications
- Operating temperature range: U: -55°C ~ +275°C, V: -55°C ~ +350°C
- Power rating: 0.5W ~ 10W (U characteristics), 3W ~ 14W (V characteristics)
- Resistance range: 0.1 ~ 62kΩ
- Tolerance: ±0.5%, ±1%, ±3%, ±5%
- TCR: -90 ~ +400ppm/°C
Select Your Region
