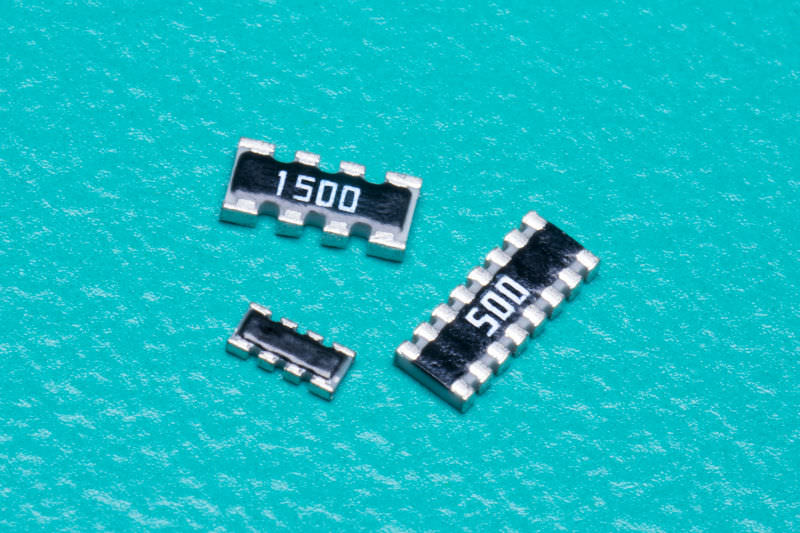

CN_K, CN_N Isolated Chip Networks-Convex Termination, Square Corners
EOL - End of Life
Features
- Manufactured to type RK73 standards
- Less board space than individual chips
- Isolated resistor elements
- Convex terminations with square corners (CN_K)
- Flat termination with square corners (CN_N)
- Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
- AEC-Q200 Tested: CN1E4K and CN1J4K only

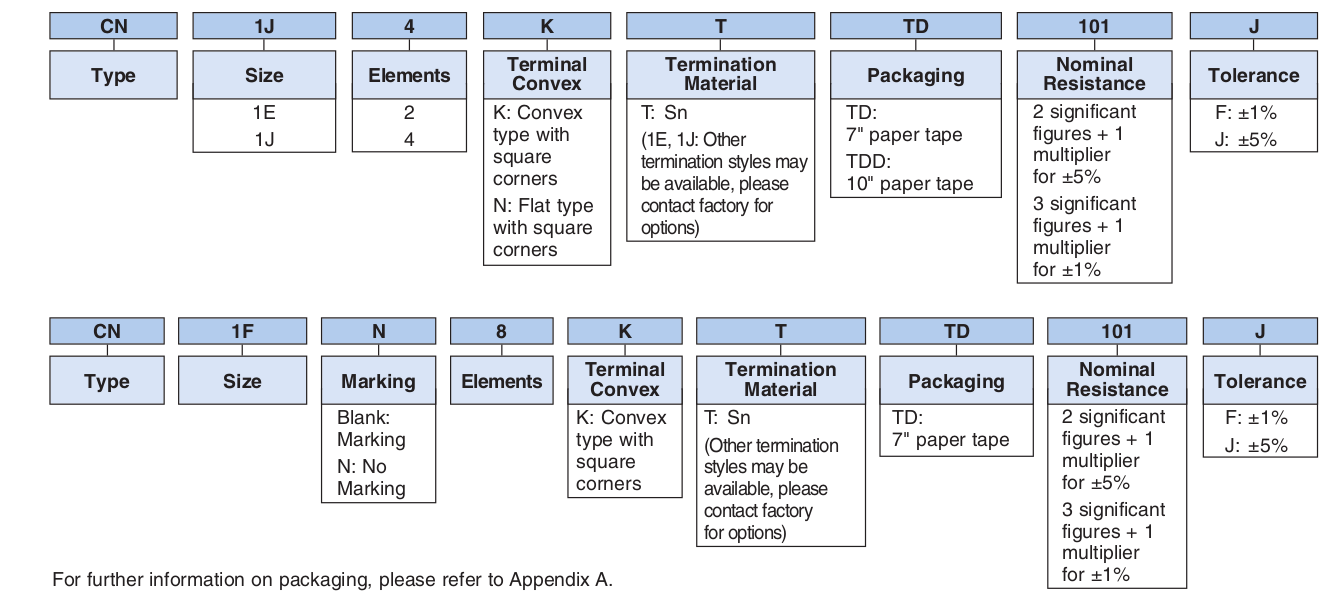

Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 2/11/2019
Catalog Pages
Full Line Catalog
Selection Guide
