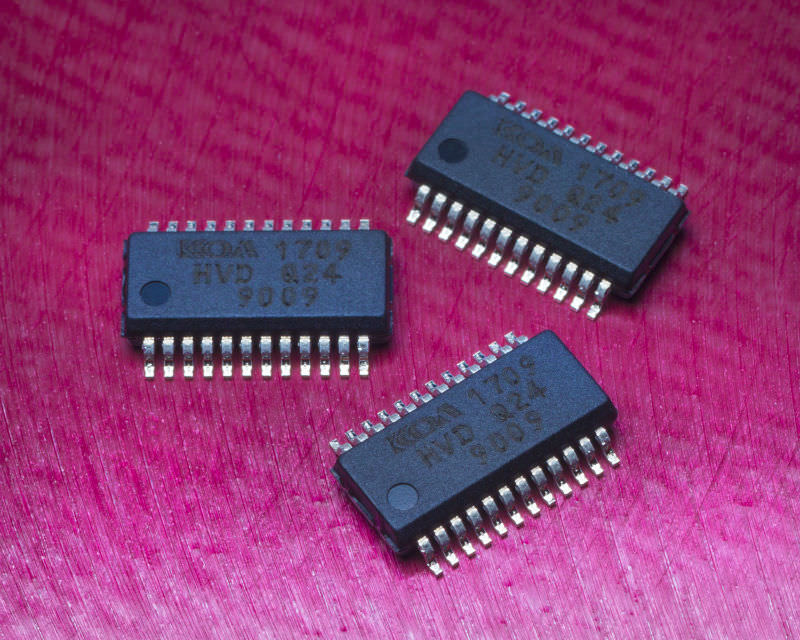

HVDQ24 High Voltage Divider- Precision Type Resistors
Not Recommended for New Design
Features
- High precision high voltage divider

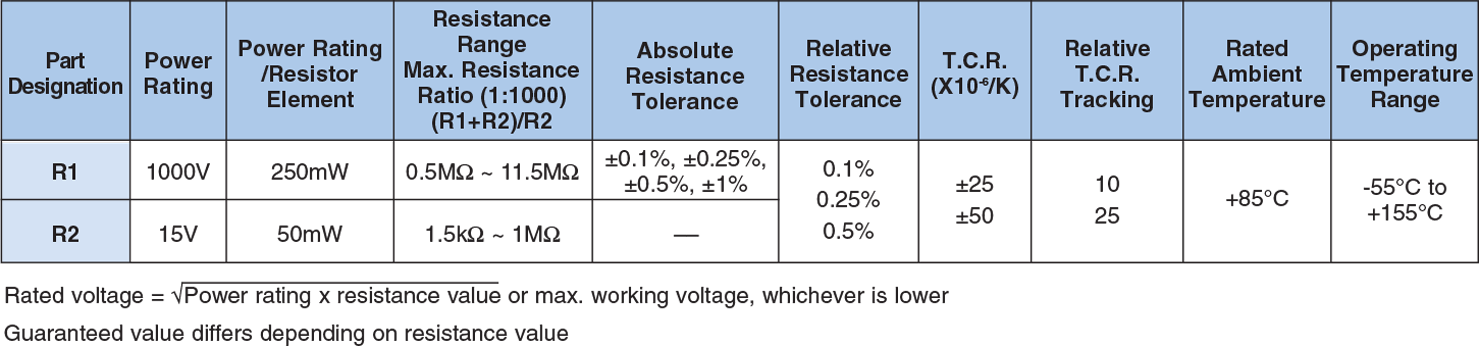

- Maximum resistance value 11.5MΩ, maximum working voltage 1000V, maximum resistance ratio 1000:1
- Relative precision of pair resistors are guaranteed
- Higher integration saves board space and overall assembly costs
- Excellent reliability with standard molded IC package
- Suitable for reflow soldering
- Eu RoHS regulation is not intended for Pb-glass in insulation coating

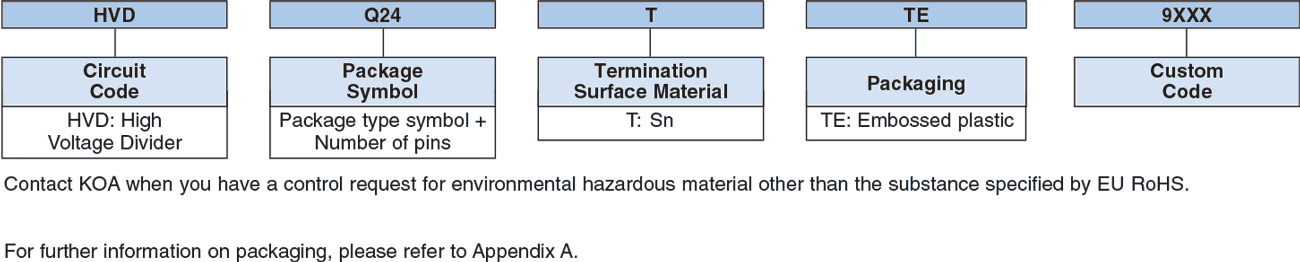

Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 12/8/2022
Catalog Pages
Full Line Catalog
Selection Guide
