SG73S2E1-RT Surge Protection (Anti-Sulfur)
Not Recommended for New Design
2E1 Size Only
Features
- Excellent anti-sulfuration characteristic due to using high sulfuration-proof inner top electrode material/surge
- Superior to RK73 series chip resistors in surge withstanding voltage and high power
- SG73S (for surge) are able to select resistance tolerance is available from ±0.5%
- Products with lead-free terminations meet EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in electrode, resistor element and glass.
- AEC-Q200 Tested

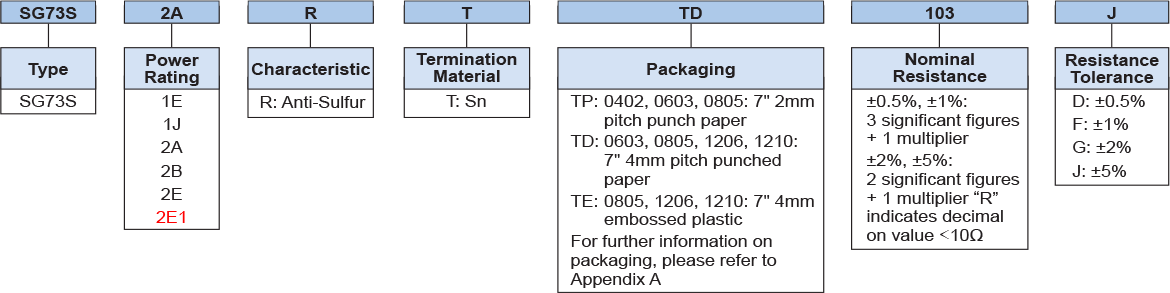

Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 4/02/2025

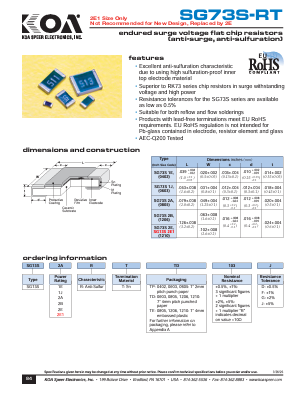

Catalog Pages
Full Line Catalog
Selection Guide
