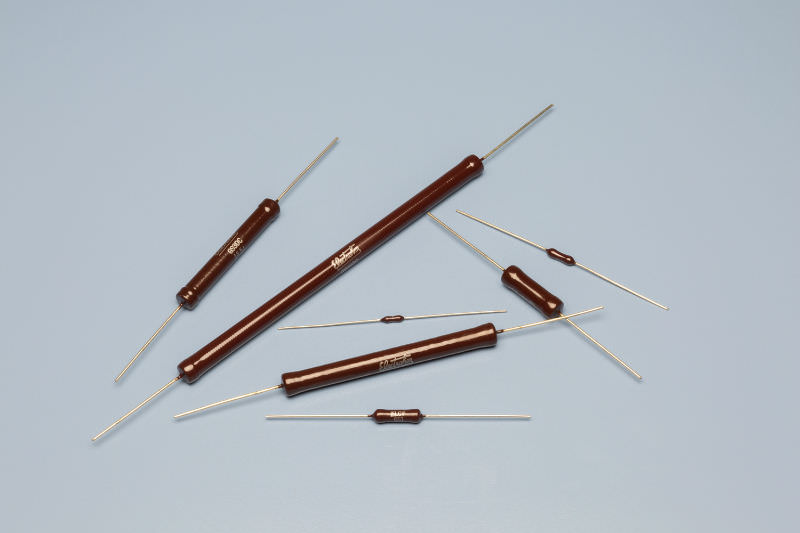

GS High Voltage, High Resistance Thick Film, Power
Features
- Miniature construction can endure to high voltage and high power
- Excellent in anti-surge characteristics
- Wide resistance range of 500kΩ - 10GΩ and small T.C.R.
- Product meets EU RoHS requirements. EU RoHS regulation is not intended for Pb-glass contained in resistor element and brass cap.

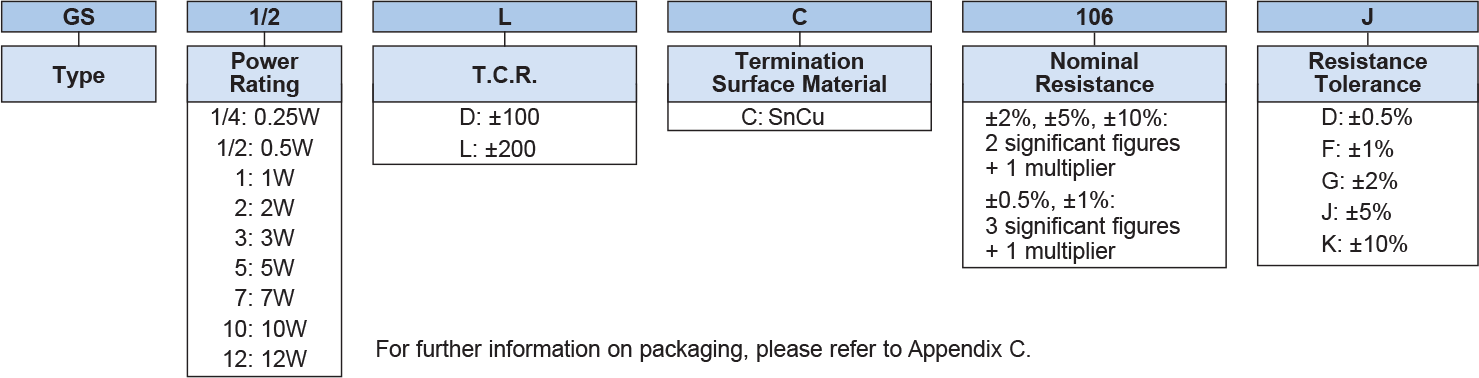

Ordering Information CHECK INVENTORY ORDER SAMPLES
Last Updated: 12/8/2022
Downloads
Catalog Pages
Full Line Catalog
Selection Guide
3D Models
